Build Your Soil Warrior

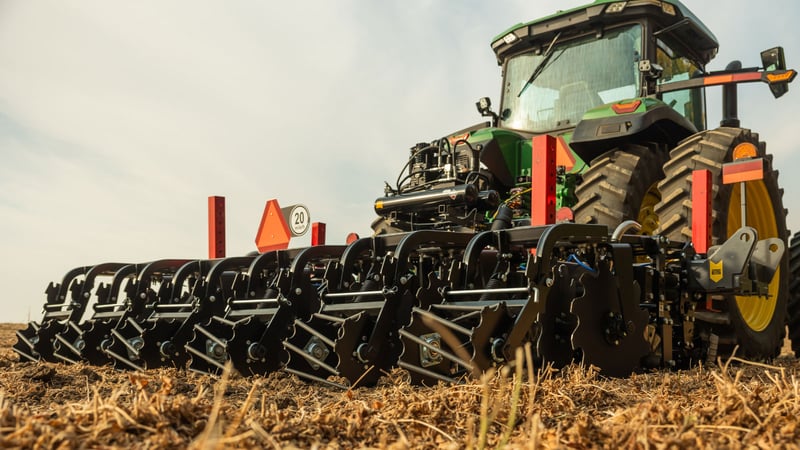

The SoilWarrior^® Edge™ row unit can be easily adjusted to run with a single tillage coulter, single coulter and shank/knife, or with three tillage coulters. Using the single-tillage coulter configuration or a three-coulter setup provides the ability to size residue, manage soil flow and freshen zones with accuracy. SoilWarrior Edge row units are also available for individual sale and adaptable to toolbars from other manufacturers.



SETTING	ZONE WIDTH (APPROX)	TILLAGE DEPTH
Single Coulter	8"	Adjustable to 6"
Dual/Triple Coulters	10"-12"	Adjustable to 6"

The SoilWarrior^® Edge™ row unit can be easily adjusted to run with a single tillage coulter, single coulter and shank/knife, or with three tillage coulters. The single coulter and shank/knife configuration combines residue-cutting precision with the fracture and lift action of a shank or knife. The standard lead coulter clears the path, while the shank/knife works below the surface to create ideal soil structure and placement zones. SoilWarrior Edge row units are also available for individual sale and adaptable to toolbars from other manufacturers.



SETTING	ZONE WIDTH (APPROX)	TILLAGE DEPTH
Single Coulter with shank/knife	8-10"	Adjustable to 9"

Two 20-inch wavy coulters provide 2 to 6 inches of tillage for standard-depth tillage with our SoilWarrior^® X row unit. This configuration is great for spring because it promotes rapid germination and early root development, but it can be used in any season. The lead coulter kit, a bolt-on replacement for the gauge wheel, helps eliminate variability in the zone in tough soil conditions.

The SoilWarrior^® N row unit is a versatile choice for growers who want to create 8- to 10-inch-wide planting zones using a single coulter or a coulter/shank combination. Till up to 5 inches deep with the wavy coulter and attach a shank for a tillage depth of 9 inches. Optional NH3 knife available. Soil is contained and nutrients are sealed in the zone by 25-inch containment coulters.

When you need deep tillage, a large 30-inch diameter cog wheel with replaceable iron tillage bits fractures the soil up to 12 inches deep. It is followed by two 25-inch serrated coulters that contain the soil in the zone. These containment coulters are the largest in the industry and can be adjusted for width, position and angle. A removable gauge wheel helps provide depth control.

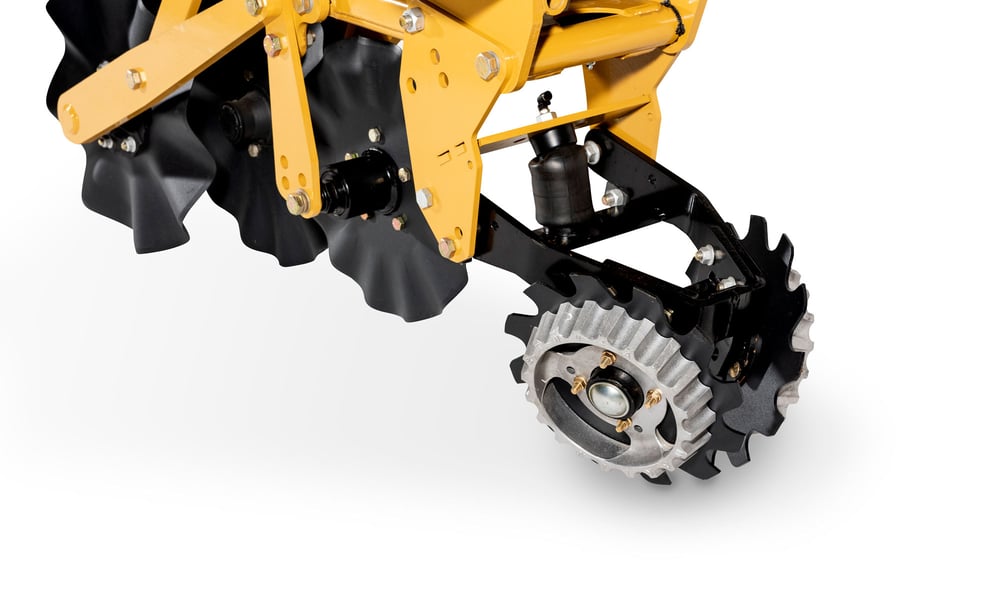

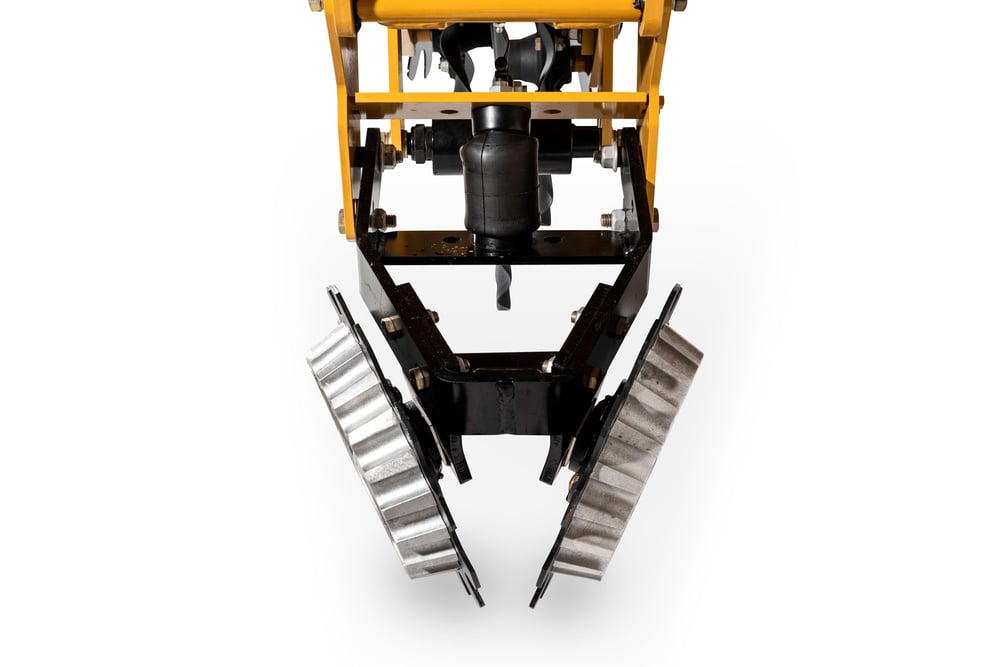

Clear trash and residue ahead of your tilled strips with ETS zone cleaners. Our solid construction and innovative design keeps them rolling through heavy crop residue at high rates of speed. Easily controlled from the cab with your choice of airbags or pneumatic cylinders.

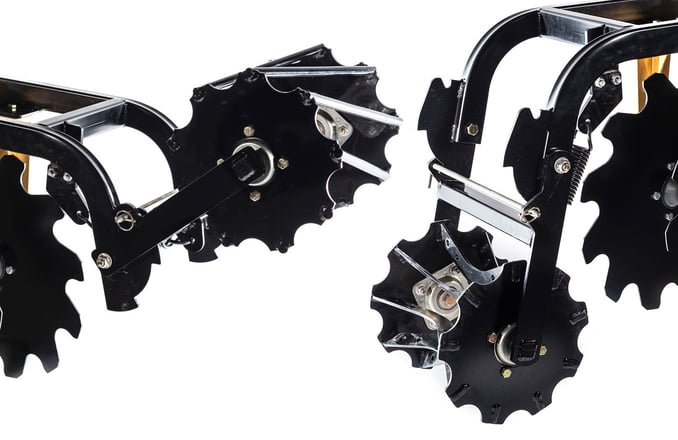

Finish your seedbed with ETS rolling baskets. Constructed from robust steel with hardened steel bushings and high-quality bearings, ETS offers two types of rolling baskets: round bar and berm builder. The round bar creates a level seedbed behind the row unit, while the berm builder features adjustable flat bars so operators can change the berm height.

Get peace of mind while applying product with this wireless blockage detection system.

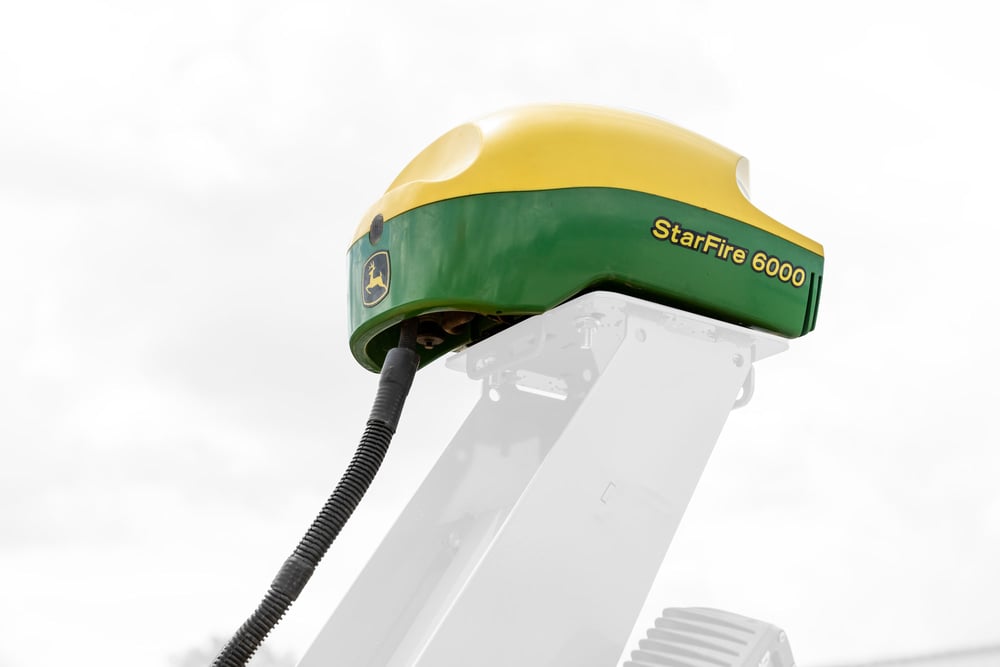

Steer the machine separate from the tractor through active implement guidance. Help maintain precision guidance and precision placement of fertilizer while staying on the row through varying terrain. Adaptable to tractors from nearly all manufacturers.

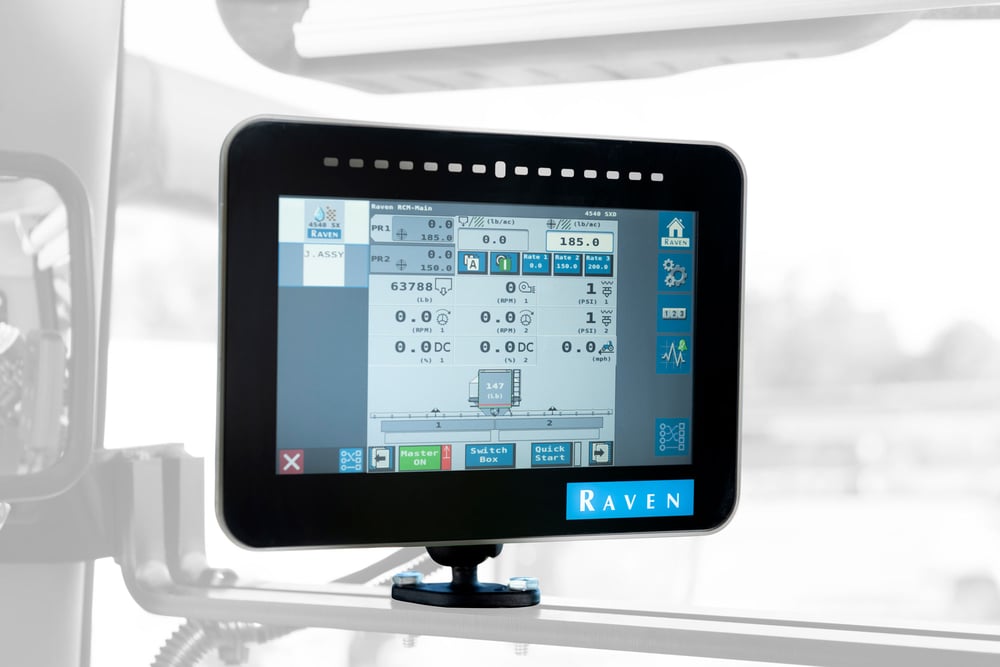

The SWICM, Powered by Raven, is a versatile and user-friendly rate controller that can be installed on any SoilWarrior. It is compatible with most ISOBUS displays, allowing the operator to utilize their existing precision technology.

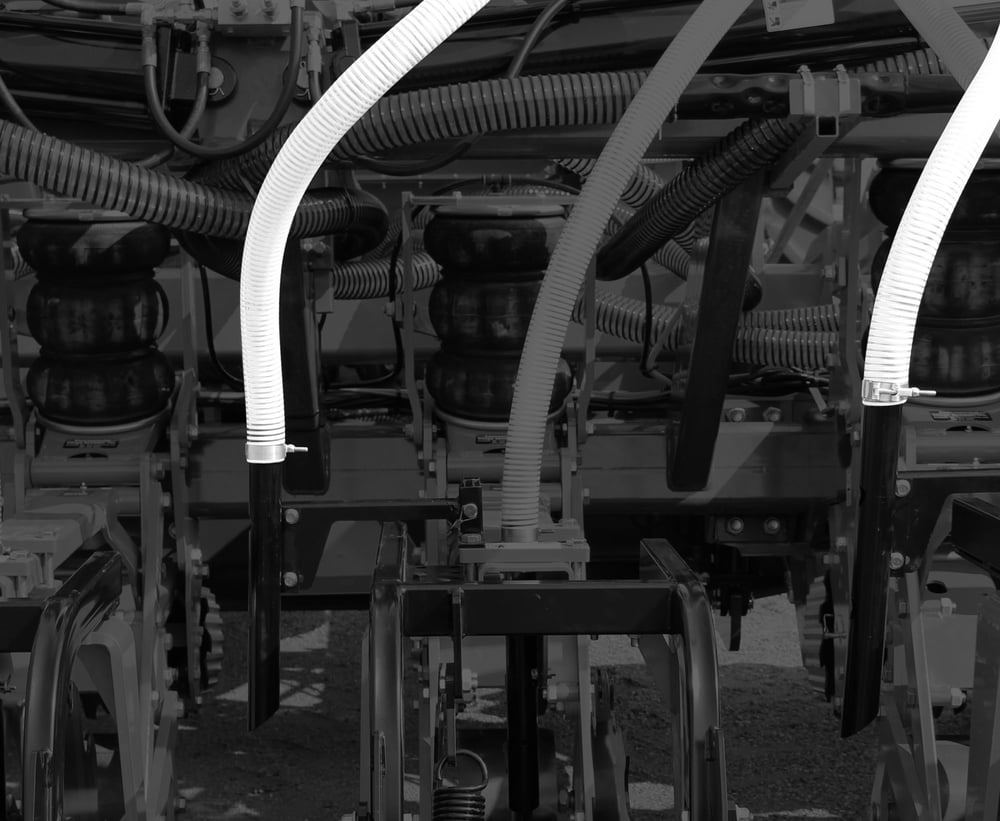

A one-pass solution to applying cover crops while performing tillage and nutrient placement with the SoilWarrior. The cover crop kit allows the operator to apply cover crops in the zone, between the zone, or both. It can be used in conjunction with an existing dry fertilizer bin on a SoilWarrior or with the new Cover Crop Applicator (CCA) system.

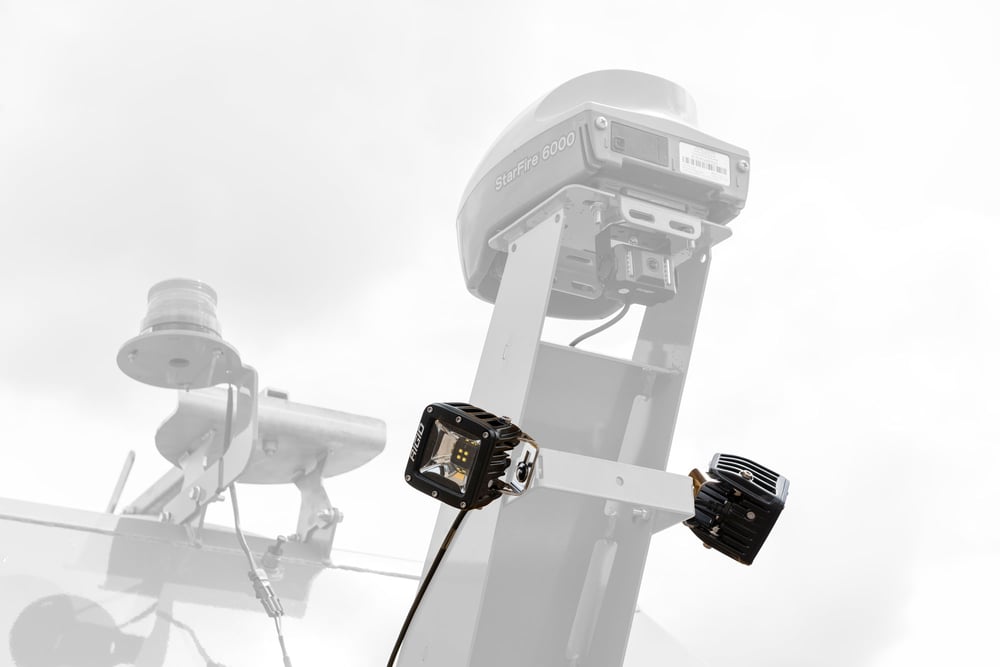

Enhance nighttime visibility with the ETS working light kit. The kit consists of two high intensity LED spotlights, a mounting bracket and wire harness. Lights are fully adjustable for optimal positioning.

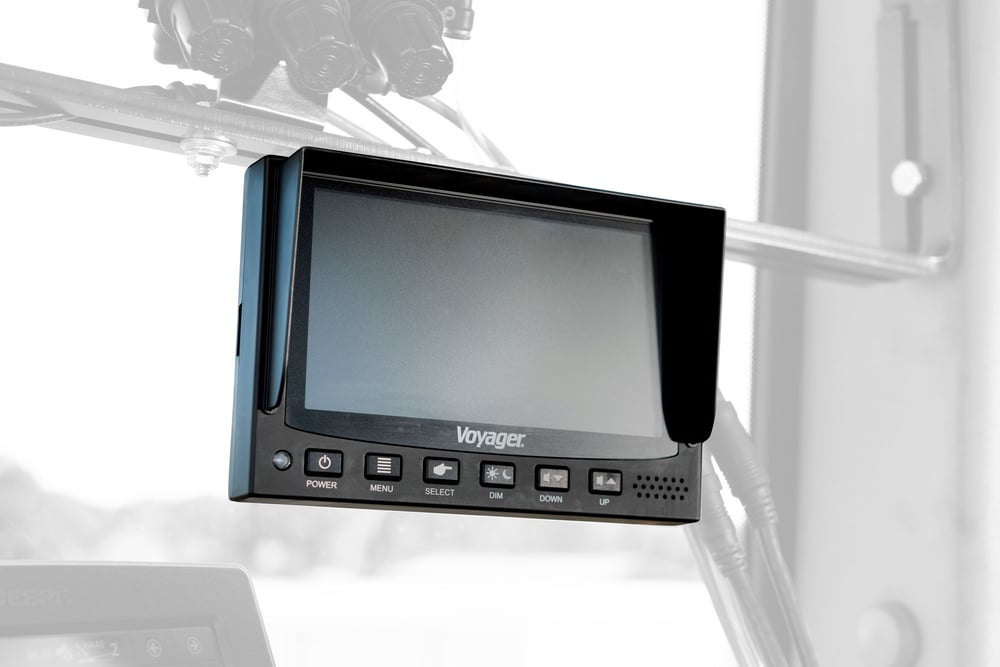

Get better visibility from the tractor cab. Observe row unit performance on the in-cab monitor while in operation by placing the magnetically-mounted cameras on the rear globe mount and rear axle. Also enhance safety with the ability to see behind the machine when backing the SoilWarrior or traveling between fields.

The VISUM fertilizer sensor system is a wireless blockage detection system providing the operator peace of mind while applying product.
